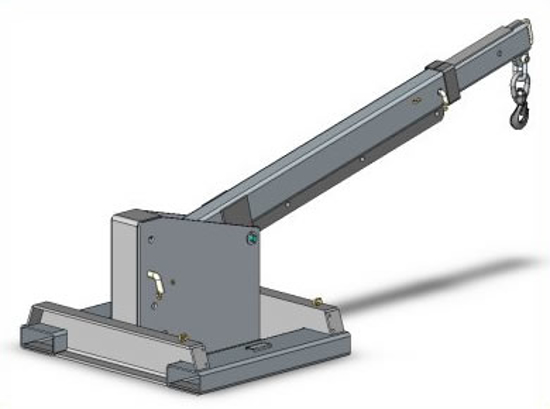

Tilt Jib Long Jib Attachment 4750kg

The type STJL5 Tilt Jib (Long) with 4750kg capacity is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments.
Part No: EW-STJL5
*
Call for pricing
The type STJL5 Tilt Jib (Long) with 4750kg capacity is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 2.4 metres can be gained while the Jib can be fully extended to 3.65 metres.

This Jib has been fitted with wide pockets suitable for Forklifts with special hydraulic Tine positioners. Simply slide onto the Fork Tines and secure with safety chain.

  • Supplied with safety swivel Hook and Shackle
Products specifications
FinishZinc
SWL (kg)4750
Load Centre (mm)1060
Pocket Size (mm)185 x 75
Pocket Centres (mm)875
Overall Length when closed (mtr)2.22
Horizontal Centre of Gravity (mm)1350
Vertical Centre of Gravity (mm)380
Unit Weight (Kg)270
